Mounting accessories for load cells
 |
| V10000-275 : Mounting accessories for load cells series CBL - CBX |
| V10000 : for load cells CBL kg 250 - 12500; CBX kg 15000 |
| V10275 : for load cells CBL kg 250 - 12500; CBX kg 15000 |

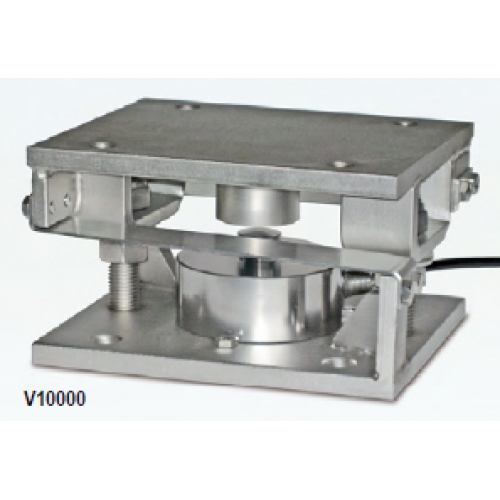

| AISI-304 stainless steel weigh modules designed for silos, tanks, mixing machines, hoppers subject to vibrations because of parts in motion. For a correct installation it is strongly recommended to utilize only the accessory without load cell. To fi nish the installation (weldings,etc..) by means of a copper wire, connect the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system; then proceed to the load cell installation taking off the bolts (3). Loosen the nuts (4), verify that the bolts (2) do not touch the sides of hole of the upper plate, turn the nuts (5) without cause a weight increase, then fi x the load cells by using the bolts. |
| Lower Plate must lay on supporting surfaces not deformable. |
| The use of weigh modules is recommended to simplify the installation of cells and especially to achieve optimal accuracy and reliability. To ensure the stability of the structure, the designer must consider further contrivances according to the following conditions: Knocks and vibrations; Seismic conditions; Hardness of support structure; Wind effect. |
 |
