Mounting accessories for load cells
 |

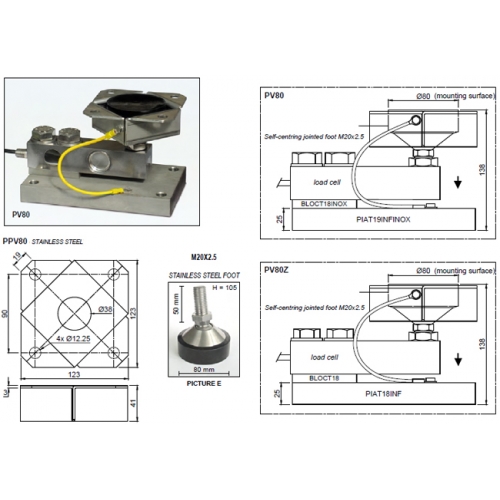

| PV80 / PPV80 : Mounting accessories for load cells series FTP - FTK - FTZ |
| PV80 : for load cells FTP kg 3000 - 5000; FTZ kg 5000 |
| PV80Z : for load cells FTK kg 3000 - 5000 |
| PPV80 : Upper plate for foot mounting |
| Load cell NOT mounted: code with suffi x -PRE |
| Mounting accesories designed for rollers, platforms, tanks, hoppers, etc..; provided with a stainless steel self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates. |

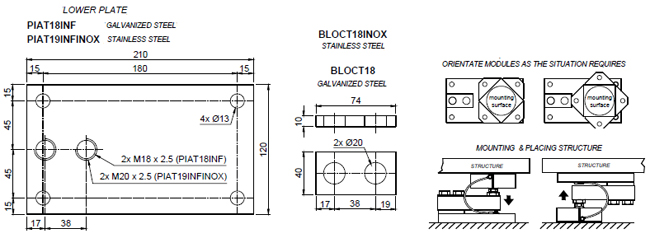

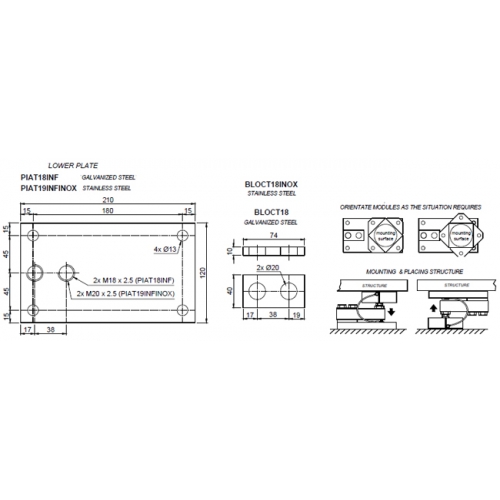

| Connect all the lower plates to the earthing system. |
| In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height. |
 |
 |
