Mounting accessories for load cells
 |
| PV-Z / PPV : Mounting accessories for load cells series FTKL - FTP /-P- FTK - FTZ - FTL |
| PV : (max 2000 kg) stainless steel |

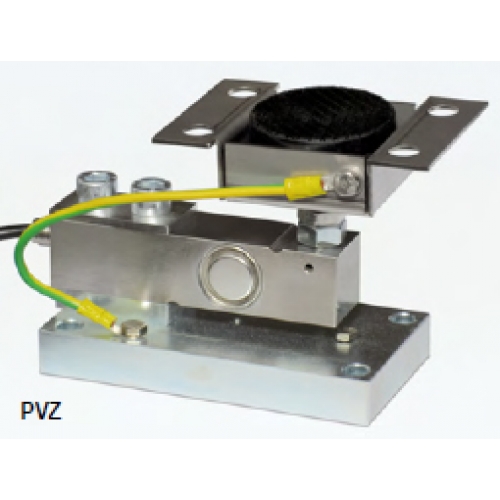

| PVZ : (max 2000 kg) nickel-plated |
| PPV : AISI 304 steel upper plate for foot mounting |
| Load cell NOT mounted: code with suffi x -PRE |

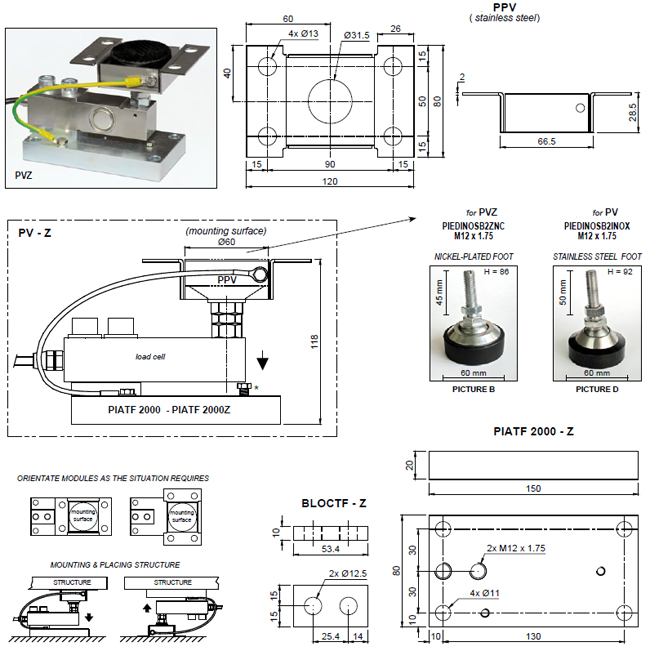

| Mounting accessories designed for rollers, platforms, tanks, hoppers, etc..; provided with a self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates. Max load 2000 kg. During the transport and installation the lock (*) must touch under the load cell. After installation, move the lock away from the load cell. Connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height. |
 |
