TLS485 : Digital weight transmitter with RS485

Options on request :

CASTL IP67 box version with transparent cover
CASTLPG9 transparent version with 6 PG9 cable glands
CASTLGUA transparent version with 6 PVC fi ttings
CASTLTAST IP67 box version with external keypad
CASTLTASTPG9 keypad vers. with 6 PG9 cable glands
CASTLTASTGUA keypad version with 6 PVC fi ttings
IP67 ATEX version II 3GD (zone 2-22)
2 Analog inputs 0-10V, 10 bits (they replace logic inputs)

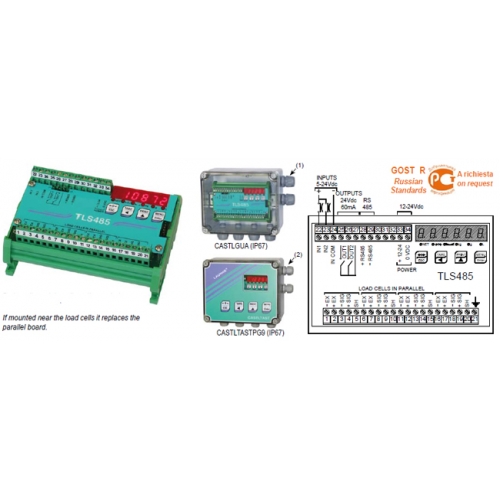

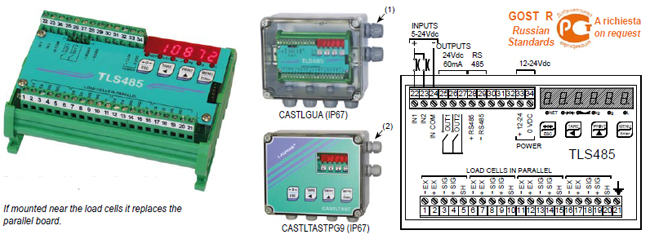

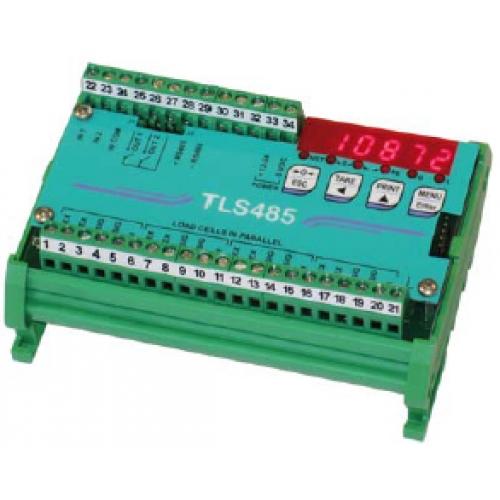

Weight transmitter and indicator for Omega/DIN rail mounting suitable for back panel or junction box. Six-digit semialphanumeric display (8mm h), 7 segment LED. Four-key keyboard. Dimensions: 123x92x50 mm. IP67 box version, dimensions: 170x140x95mm. Four fi xing holes diameter 4mm (centre distance 122x152mm).

The instrument is equipped with a RS485 serial port for connection to :

- PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU. Optional protocols: Profi bus DP, Ethernet/ModbusTCP, USB and Radio by appropriate converter.

- Remote display.

THEORETICAL CALIBRATION is performed via the keyboard.

Technical Features :

	POWER SUPPLY and CONSUMPTION	12 - 24 VDC +/- 10% ; 5 W
	No LOAD CELLS IN PARALLEL and SUPPLY	max 8 ( 350 ohm ) ; 5VDC/120mA
	LINEARITY	< 0.01% Full Scale
	THERMAL DRIFT	< 0.0005 % F.S. /°C
	A/D CONVERTER	24 bit (16000000 points) 80Hz
	MAX DIVISIONS (with measure range: +/- 10mV =2mV/V)	+/- 999999
	MEASURE RANGE	+/- 19.5 mV
	MAX LOAD CELL’S SENSITIVITY	+/- 3 mV/V
	MAX CONVERSIONS PER SECOND	80 conversions/sec.
	DISPLAY RANGE	- 999999 ; + 999999
	DECIMALS / DISPLAY INCREMENTS	0 - 4 ; x 1 x 2 x 5 x 10 x 20 x 50 x 100
	DIGITAL FILTER / CONVERSION RATE	0.080 - 7.5 sec / 5 - 80 Hz
	OPTORELAYS LOGIC OUTPUTS	N.2 - max 24 VDC / 60mA
	LOGIC INPUTS	N.2 - optoisolated 5 - 24 VDC PNP
	SERIAL PORT	RS485
	BAUD RATE	2400, 4800, 9600, 19200, 38400, 115200
	HUMIDITY (condensate free)	85 %
	STORAGE TEMPERATURE	- 30°C + 80°C
	WORKING TEMPERATURE	- 20°C + 60°C

The two inputs can work as: net/gross weight, zero-setting, peak, or can be remotely read via protocol.

The three outputs can work as set-points or can be remotely switched via protocol. In monodirectional mode the RS485 port can be directly connected to PC’s or remote display’s RS232 port.
