Belt Weigher Controller

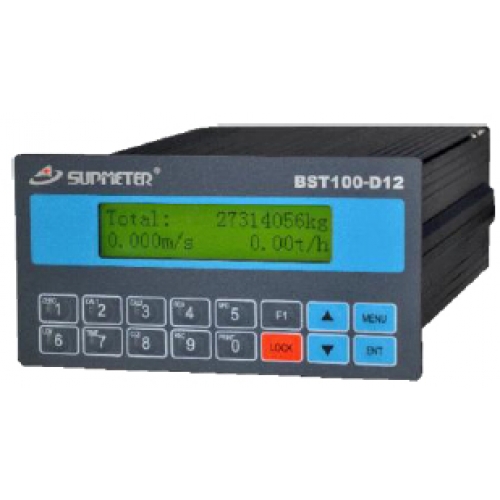

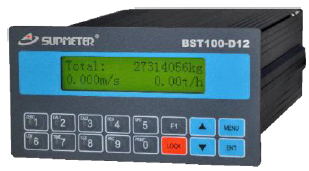

BST100-DX2 Series Belt Weigher Controller

Main Applications :

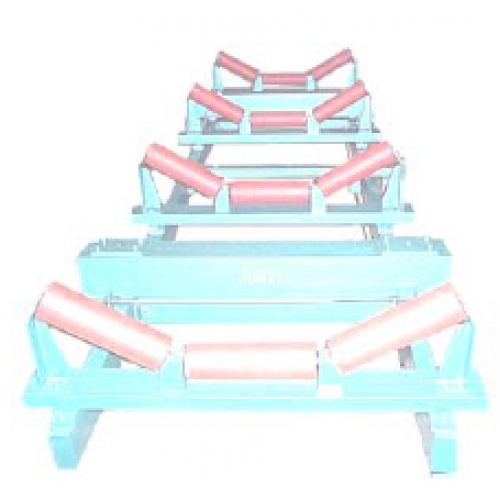

Suitable for Belt Weigher.

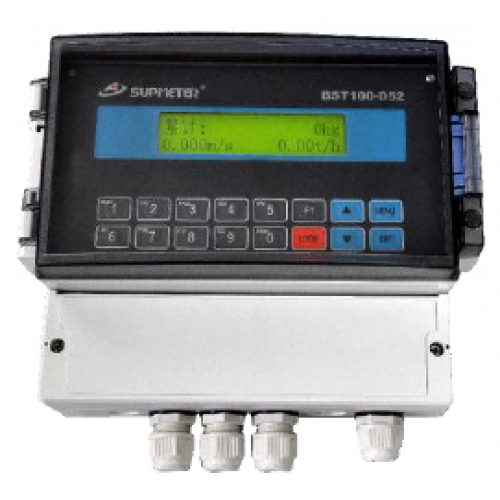

D52 Suitable for Corrosive gas environment.
D52EX Suitable for Explosion gas environment: Zone 1&2; Classes of explosion gas mixture: IIA, IIB; Temperature grades of explosion gas mixture: T1~T6; Ex-mark: ExdII BT6 Gb.

Main Features :

ARM CPU system with EMC design, higher arithmetic speed and sampling frequency.
128×64 dots LCD display screen with yellow-green background for Chinese /English display.
Chinese/English keypad for Menu&Shortcut operation with key tone.
Optional ‘External Speed’ or ‘Inner Speed’ working mode.
Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
2 Optional communication ports for linking to IPC/PLC, remote display & operation terminal, serial printer and wireless module.
Standard MODBUS communication protocol and support industry configuration software, e.g. iFix.
Weight Records per shift/day/month of a year for querying and printing.

Technical Specifications :

Power: AC220V±15%, 50/60Hz, Max. 10W.
Loadcell Excitation Voltage: DC10V.
Weighing Signal Input Range: 0~25mV.
Max. Connection Quantity: 8 Loadcells (350Ω).
24-bit Σ-△ADC; Sampling Frequency: 200Hz; Non-linearity: 0.005%FS.
Speed Sensor Excitation Voltage: DC5~12V (adjustable).
Speed Signal Input Range: 0.5~3000Hz.
1 Optional Flow Analog Signal Output [AO: 4~20mA, 0.05%FS].
1 ‘Totalized Weight High-speed Pulse’ Output [PO: DC5~24V, 100mA].
COM1 Optional: RS232/RS485/RS422/Profibus-DP/CANBUS /Ethernet modules. COM2：RS232.
Outline Dimension [W×H×D]
- D12: 170 × 91 × 184 mm.
- D52: 235.5 × 227.5 × 119.5 mm.
- D52EX: 340 × 390 × 205 mm.
Cut Dimension [W×H]
- D12: 151 × 76 mm.
Service Temperature: -20℃~+40℃.
IP Grade
- D12: IP50.
- D52/D52EX: IP65.
